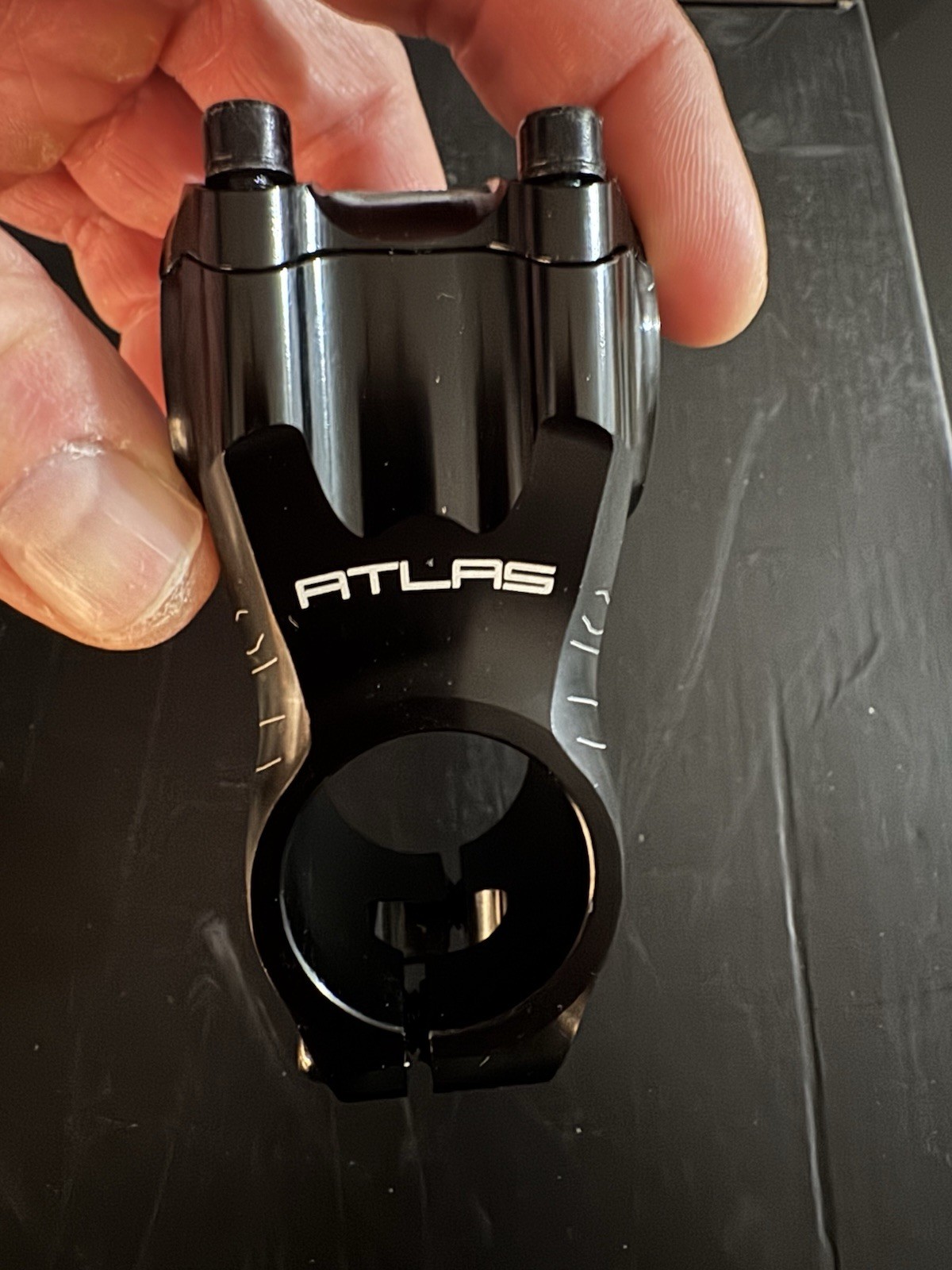

RaceFace Atlas 35 Stem Length 35mm Clamp 35mm +/-0 Deg 1 1/8 MTB Stem

RACE FACE stem Atlas 35 | 0 °

Atlas - light and stable, for the toughest use

The Atlas 35 stem was developed to reduce the weight of the overall system while maintaining the proven rigidity and performance of the well-known Atlas line.

The measurably greater rigidity compared to systems with 31.8 mm clamping does not only come from the massive and aggressive design of the stem.

A lower overall weight in connection with the 35er handlebar confirms the advantages of the oversize construction, which does not have to shy away from enduro, downhill or freeride use.

Technical specifications:

intended use : All-Mountain, Trail, Freeride, Downhill

Material stem: aluminum 6061

Material screws: steel

Handlebar clamp Ø: 35 mm

Steerer diameter: 1 1/8 "

Lengths: 35

Angle: 0 °

Clamp height fork shaft: 40 mm

Clamping width handlebar: 49 mm

Tool holder: hexagon socket, 4 mm (handlebar clamp) and 5 mm (steerer tube)

Max. permissible torque: 6.2 - 7.3 Nm (handlebar clamp), 10.8 - 13.6 Nm (steerer tube)

Color: black with white decals

Weight: 141g
